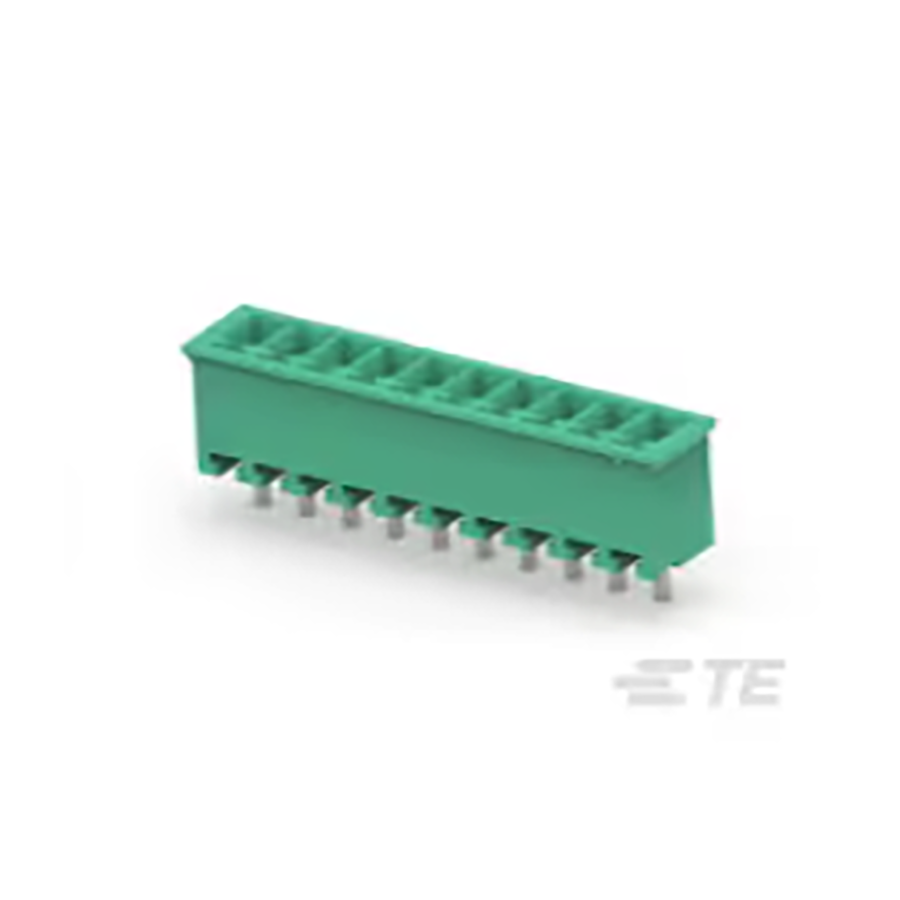

1-284514-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-284514-0
Datasheet:
Description:
Terminal Blocks Through Hole 10 3.5 mm 11 A 300 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 7.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 3.5 mm |
| Current | 11 A |
| Current Rating | 11 A |
| Max Current Rating | 11 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 10 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 10 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Green |
| shrouded | Yes |
| Tail Length | 3.4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Plug |
Stock: 121
Distributors
pcbx
pcbxUnit Price$3.23506
Ext.Price$3.23506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.23506 | $3.23506 |
| 10 | $2.27155 | $22.71550 |
| 25 | $2.00596 | $50.14900 |
| 50 | $1.77141 | $88.57050 |
| 100 | $1.67737 | $167.73700 |
| 300 | $1.57750 | $473.25000 |
| 500 | $1.48357 | $741.78500 |
| 1000 | $1.39524 | $1395.24000 |
